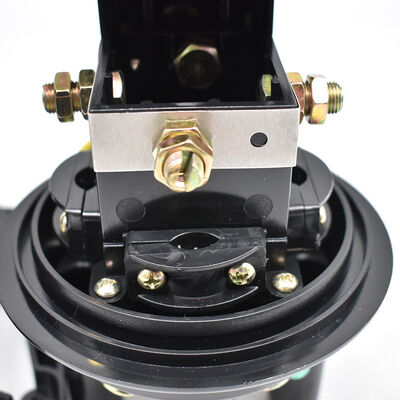

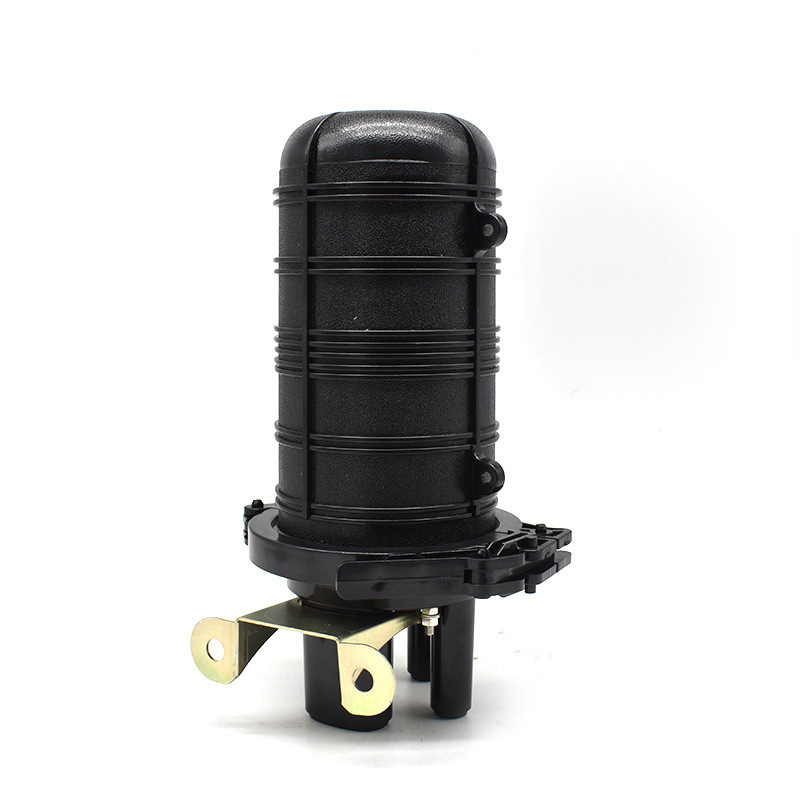

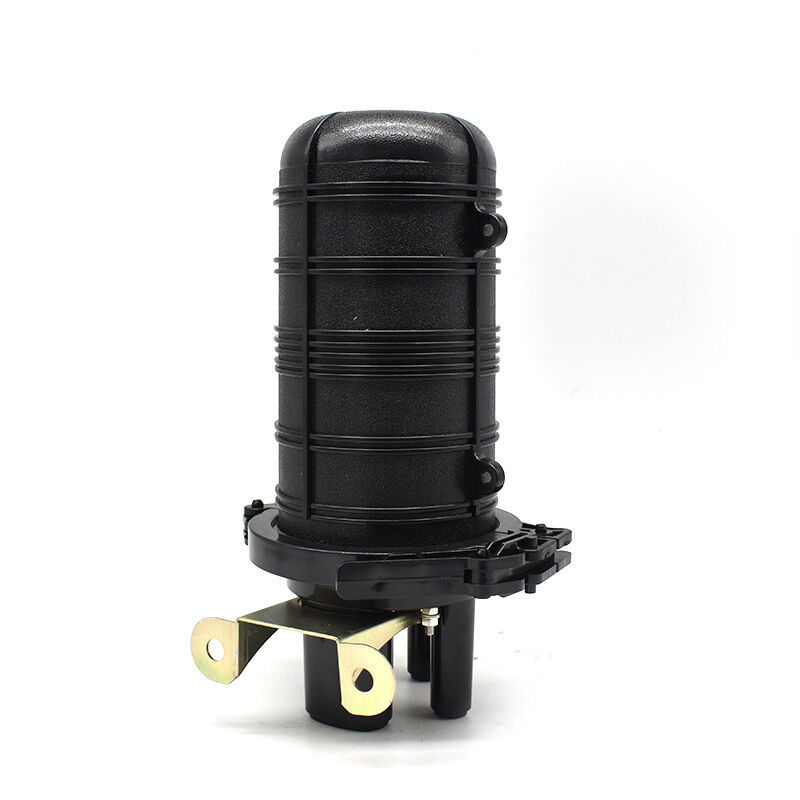

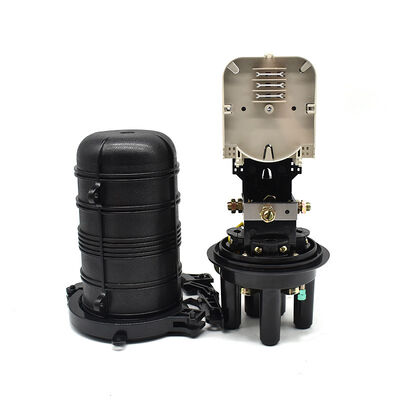

12 Cores 1 In 3 Out Vertical Heat-Shrink Fiber Optic Closure for Outdoor Splice Protection

Ampliación de imagen : 12 Cores 1 In 3 Out Vertical Heat-Shrink Fiber Optic Closure for Outdoor Splice Protection

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	DOWELL

Pago y Envío Términos:

Cantidad de orden mínima:	100 Uds.
Tiempo de entrega:	7-15 días
Condiciones de pago:	T/T
Capacidad de la fuente:	1000pcs por 7 días

Contacto

12 Cores 1 In 3 Out Vertical Heat-Shrink Fiber Optic Closure for Outdoor Splice Protection

Descripción

Temperatura:

-40 ℃ ~+60 ℃

Humedad:

≤95% (a 40℃)

Presión de aire:

70 kPa ~ 106 kPa

Material:

PP/ABS/Metal

Resaltar:

12 Cores Fiber Optic Closure

1 In 3 Out Fiber Optic Splice Joint Closure

Vertical Heat-Shrink Dome Fiber Optic Closure

12 Cores 1 In 3 Out Vertical Heat-Shrink Fiber Optic Closure

Fiber Optic Splice Joint Closure Dome Types are designed for distributing, splicing, and storing outdoor optical cables entering and exiting from the closure ends. Available in direct connection and splitting connection configurations, these closures are suitable for overhead, pipeline manwell, and embedded installations. Compared to terminal boxes, closures require stricter sealing standards and include sealing rings and air valves for enhanced protection.

Specifications

Temperature	-40℃ to +60℃
Humidity	≤95% (at 40℃)
Air Pressure	70kPa to 106kPa

Key Features

High-quality engineering plastic casing with excellent anti-corrosion, anti-aging properties, and smooth appearance
Reliable mechanical structure resistant to harsh environments and extreme climate changes with IP68 protection rating
Compatible with both ribbon type optical cables and common optical cables

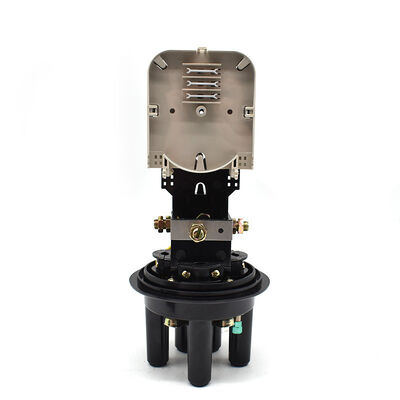

Booklet-style splice trays with adequate curvature radius (40mm minimum) and fiber winding space
Compact design with high capacity and convenient maintenance capabilities
Elastic rubber seal rings providing superior sealing and moisture-proof performance
Reusable casing with easy operation requiring no special tools, includes air valve for seal verification

Applications

Provides comprehensive protection for fiber splice points against environmental factors, particularly water permeation
Suitable for aerial installations, cable ducts, direct burial, and pedestal mounting
