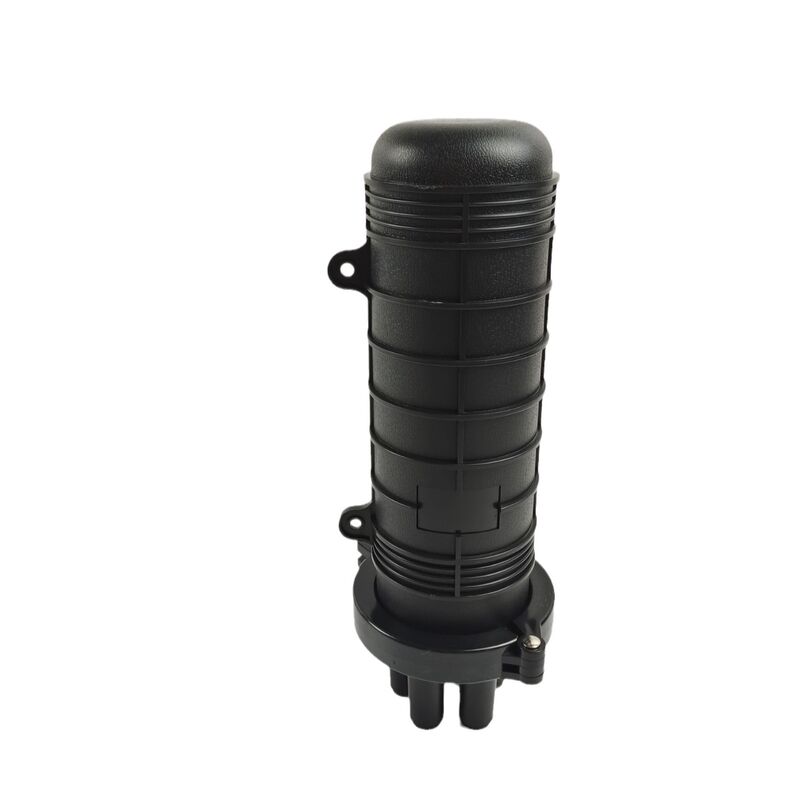

1 In 3 Out Ports Dome Fiber Optic Splice Closure with 48 Cores Heat Shrinkable Sealing for Aerial and Pole-Mounting

Ampliación de imagen : 1 In 3 Out Ports Dome Fiber Optic Splice Closure with 48 Cores Heat Shrinkable Sealing for Aerial and Pole-Mounting

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	DOWELL

Pago y Envío Términos:

Cantidad de orden mínima:	100pcs
Tiempo de entrega:	7-15 días
Condiciones de pago:	T/T
Capacidad de la fuente:	1000pcs por 10 días

Contacto

1 In 3 Out Ports Dome Fiber Optic Splice Closure with 48 Cores Heat Shrinkable Sealing for Aerial and Pole-Mounting

Descripción

Resaltar:

1 In 3 Out Ports Fiber Optic Splice Closure

48 Cores Dome Fiber Optic Closure

Heat Shrinkable Fiber Optic Joint Closure

1 In 3 Out Ports Dome Fiber Optic Heat-Shrink Closures 48 Cores

1 In 3 Out Ports Dome Fiber Optic Heat Shrinkable Closures 48 Cores
Adopts an innovative circular cap structure design, the box cover and the bottom of the box are locked and sealed with hoops, and the fiber optic cable enters and exits at one end. Has good physical and chemical properties, and is suitable for installation and use in overhead, poles, wall-mounting, manholes, pipelines, etc.

Specification:

Cable ports	One elliptical port and 3 round ports
Way to install	Pole-mounting / Wall-mounting / Aerial installation
Capacity of splice	24 single fiber
Sealing structure	Heat shrinkable sealing structure silicon gum material

Features:

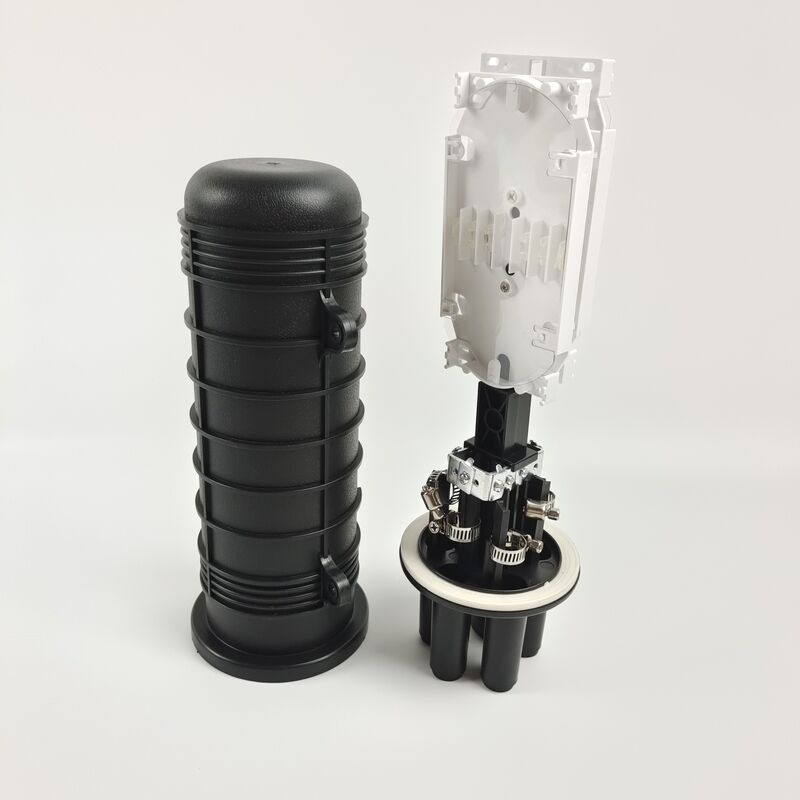

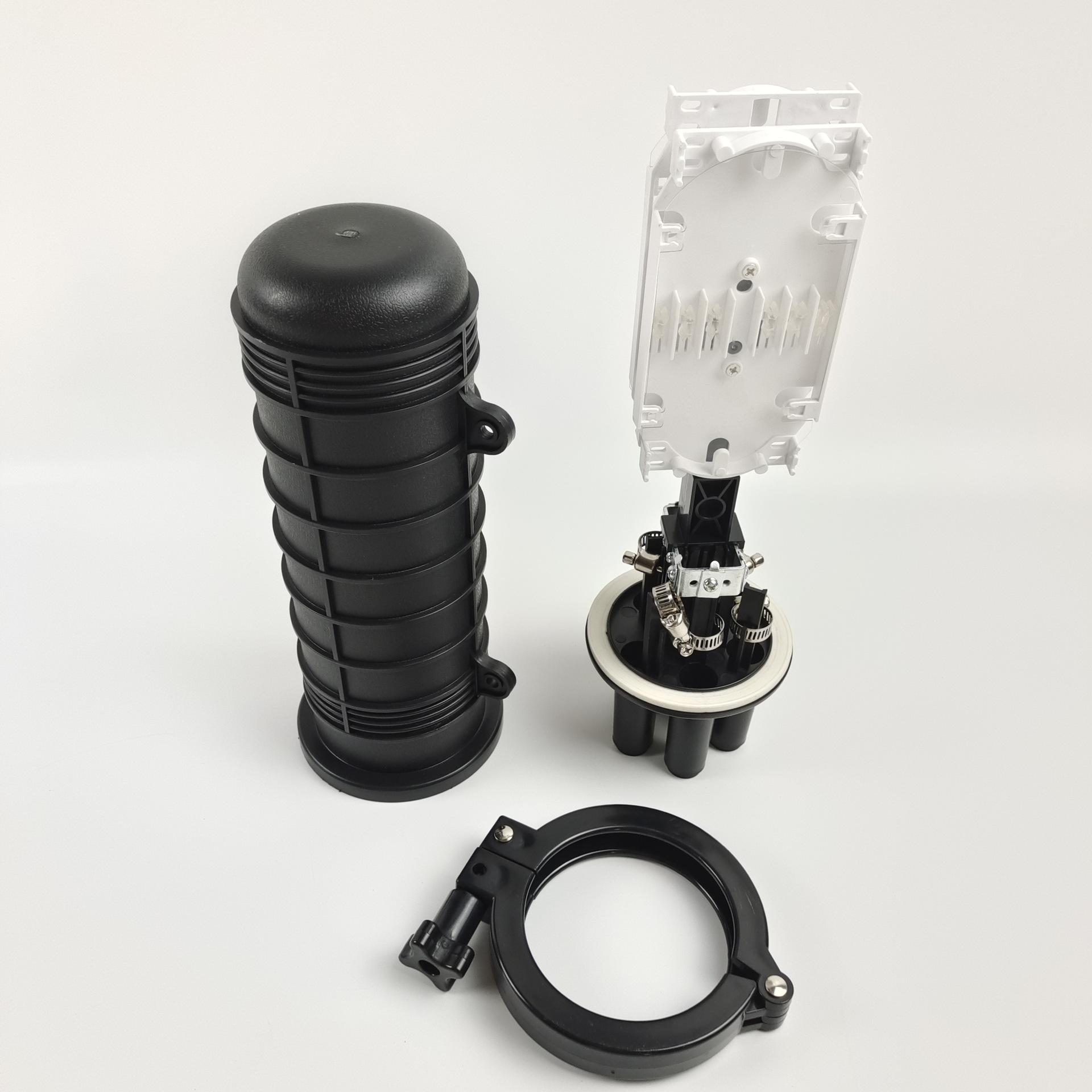

The fiber optic splice closure consists of cover, pedestal, splice tray, hoop, optical cable storage box.
The cable entry ports are sealed with heat shrinkable tube.
This is single fiber splice closure, it provides with one elliptical port and 4 round ports. The elliptical port can hold two stick optical cables.
The case body is made from imported high-intensity engineering plastics (PP) and formed the shape with mould plastics under high pressure. With the advantages of less weight, high mechanical intensity, corrosive-resistance, anti-thunderstruck and long service life.
Equipped with air-core and installation.

Application:
