48 Cores 1 In 3 Out IP65 Waterproof Cap-Type Vertical Heat-Shrink Fiber Optic Closure

Name: 48 Cores 1 In 3 Out IP65 Waterproof Cap-Type Vertical Heat-Shrink Fiber Optic Closure
Brand: DOWELL INDUSTRY GROUP LIMITED
Price: 4,999.45 USD
Availability: InStock

Todos los productos

Cordón de parches de fibra óptica
(62)

Cierre del empalme de la fibra óptica
(40)

Clampada de alambre de caída de fibra
(39)

Clampada de anclaje ADSS
(64)

Cables de fibra óptica
(27)

Separador de PLC
(26)

Cordón de parche MPO
(5)

Conector impermeable de la fibra óptica
(66)

Conector de terminales de fibra óptica
(23)

Caja de distribución de fibra óptica
(42)

Limpiador de fibra óptica
(19)

Conectores de trasero de alambre
(36)

Cintas aislantes eléctricas
(14)

Módulo LSA de KRONE
(25)

Herramientas para cortar cables de red
(142)

Certificación

China DOWELL INDUSTRY GROUP LIMITED certificaciones

Estoy en línea para chatear ahora

48 Cores 1 In 3 Out IP65 Waterproof Cap-Type Vertical Heat-Shrink Fiber Optic Closure

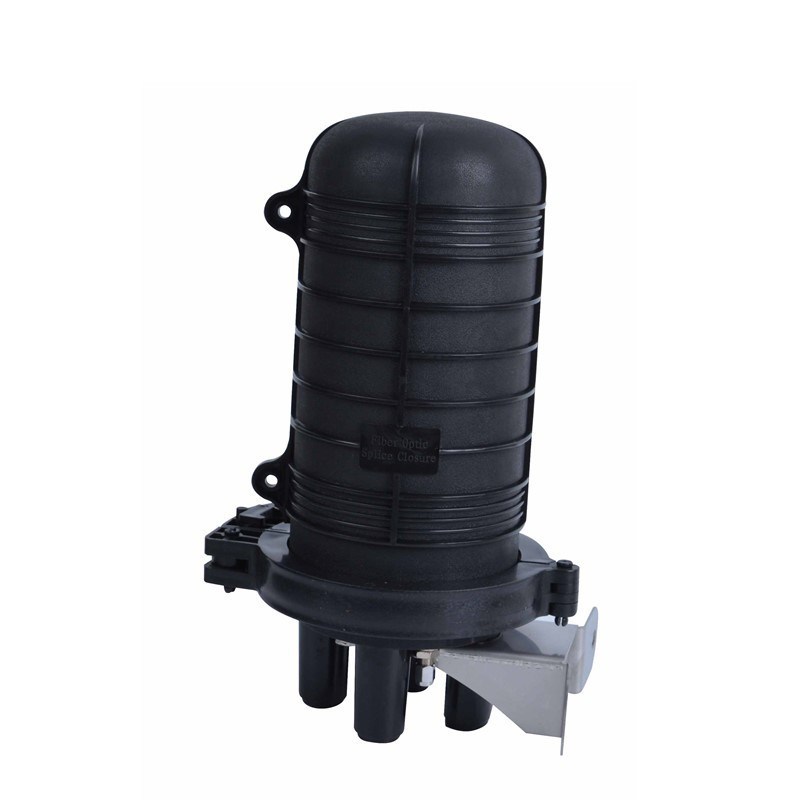

Ampliación de imagen : 48 Cores 1 In 3 Out IP65 Waterproof Cap-Type Vertical Heat-Shrink Fiber Optic Closure

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	DOWELL

Pago y Envío Términos:

Cantidad de orden mínima:	200pcs
Tiempo de entrega:	7-15 días
Capacidad de la fuente:	1000pcs por 10 días

Contacto

48 Cores 1 In 3 Out IP65 Waterproof Cap-Type Vertical Heat-Shrink Fiber Optic Closure

Descripción

Dimensiones exteriores (máx.):	300×Ø180mm	Puertos circulares y diámetro del cable (máx.):	3×Ø16mm
El cable de puerto puede ser oval (máximo).:	1×Ø25 o 2×Ø21	Recuento de bandejas de empalme:	4pcs
Capacidad de empalme para cada bandeja:	6/12FO	Combinación total:	48 FO
Resaltar:	48 Cores Fiber Optic Closure , 1 In 3 Out Fiber Optic Closure , IP65 Waterproof Fiber Optic Closure

48 Cores Cap-Type Vertical Heat-Shrink Joint Fiber Optic Closure 1 In 3 Out

Product Description

A cap-type joint closure is a specialized enclosure designed for protecting fiber optic cable splices or connections in telecommunications and data transmission systems. It features a cap-shaped structure that secures and seals the joint area, ensuring reliable performance in various environments.

Specifications

Outside Dimensions (Max.)	300*Ø180mm
Circular ports and cable dia. (max.)	3*Ø16mm
Oval port can cable dia. (max.)	1Ø25 or 2Ø21
Splice tray count	4pcs
Splice capacity for each tray	6/12FO
Total Splice	48 FO

Key Features

Protective Sealing: Adopts IP65 or higher waterproof and dustproof design, shielding internal splices from moisture, dust, and corrosion.
Compact Structure: Cap-style design enables easy installation and space-saving layout, suitable for aerial, duct, or direct burial applications.
Durable Material: Typically made of high-strength engineering plastics (e.g., PC, ABS) or metal, resisting impact, UV radiation, and extreme temperatures.
Easy Operation: Equipped with snap-on or threaded locking mechanisms for quick opening and closing during maintenance or re-splicing.
