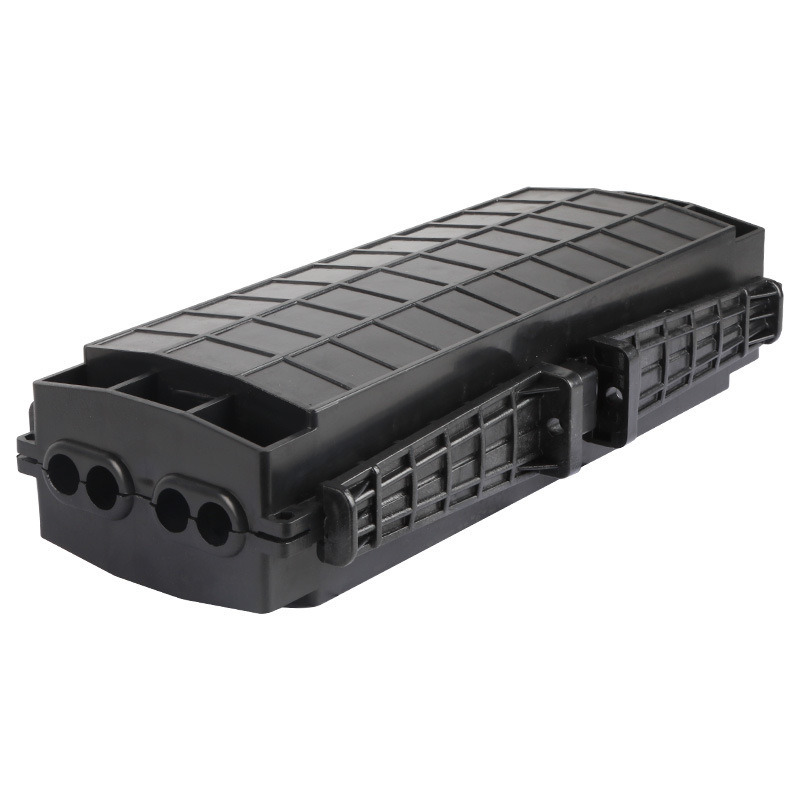

Outdoor 2 Inlet 2 Out 144 Cores IP65 Fiber Optic Joint Closure for Aerial Buried and Pole Mount Applications

Outdoor 2 Inlet 2 Out 144 Cores IP65 Fiber Optic Joint Closure for Aerial Buried and Pole Mount Applications
Outdoor 2 Inlet 2 Out 144 Cores IP65 Fiber Optic Joint Closure for Aerial Buried and Pole Mount Applications Outdoor 2 Inlet 2 Out 144 Cores IP65 Fiber Optic Joint Closure for Aerial Buried and Pole Mount Applications Outdoor 2 Inlet 2 Out 144 Cores IP65 Fiber Optic Joint Closure for Aerial Buried and Pole Mount Applications Outdoor 2 Inlet 2 Out 144 Cores IP65 Fiber Optic Joint Closure for Aerial Buried and Pole Mount Applications

Ampliación de imagen :  Outdoor 2 Inlet 2 Out 144 Cores IP65 Fiber Optic Joint Closure for Aerial Buried and Pole Mount Applications

Datos del producto:
Lugar de origen: Porcelana
Nombre de la marca: DOWELL
Pago y Envío Términos:
Cantidad de orden mínima: 200pcs
Tiempo de entrega: 7-15 días
Condiciones de pago: T/T
Capacidad de la fuente: 1000pcs por 7 días
Contacto

Outdoor 2 Inlet 2 Out 144 Cores IP65 Fiber Optic Joint Closure for Aerial Buried and Pole Mount Applications

Descripción
Cinta adhesiva: Etiquetado, fijación temporal Alcohol etílico: Limpieza
Las demás: Limpieza Cortador de la fibra: Cortar fibras
Las demás máquinas: Quite la capa protectora del cable de fibra. herramientas combinadas: Montaje de FOSC
Resaltar:

2 Inlet 2 Out Fiber Optic Joint Closure

,

144 Cores Fiber Optic Splice Closure

,

IP65 Fiber Optic Junction Box

Outdoor 2 Inlet 2 Out Fiber Optic Joint Closure 144 Cores Solutions
A Fiber Optical Closure is designed for outdoor connections between optical distribution cables and indoor optical cables. Our Fiber Optical Splice Junction Box is suitable for aerial, duct, and direct buried applications, connecting to optical switches through fiber jumpers to protect against environmental degradation from heat, cold, light, oxygen, and microorganisms. The robust construction provides excellent mechanical strength, with a solid shell that withstands extreme environmental conditions while offering flame retardant and waterproof protection against vibration, impact, cable tension, and twisting.
Specification
Protection level IP65
Main material ABS, PP
Application Outdoor Aerial Dome, Buried, Pole Mount Type Outdoor
Atmospheric pressure 70kPa~106kPa
Insulation resistance >2*10MΩ/500V(pc)
Tensile strength >1000N

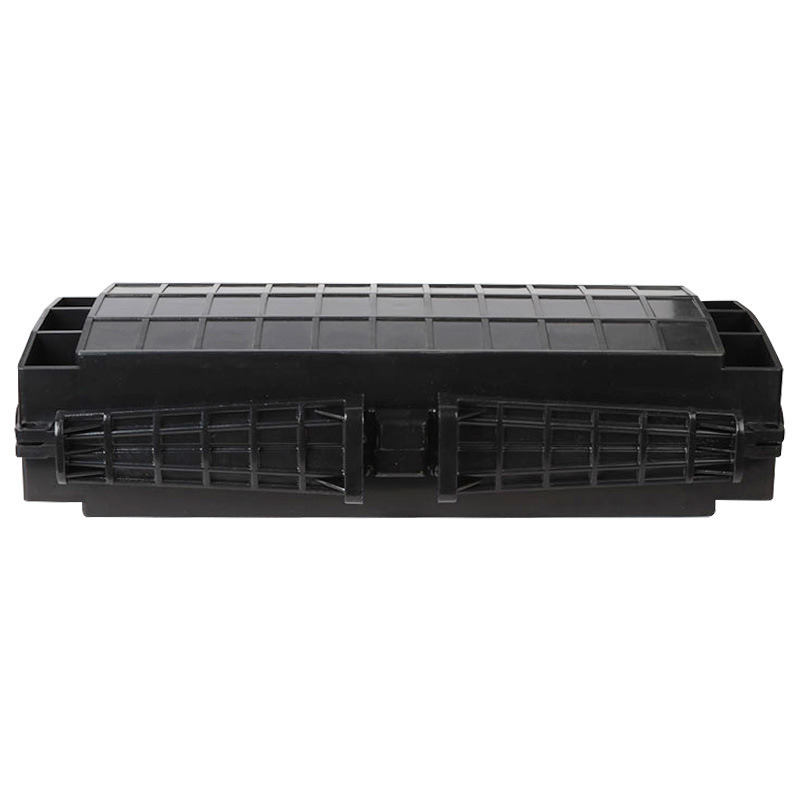

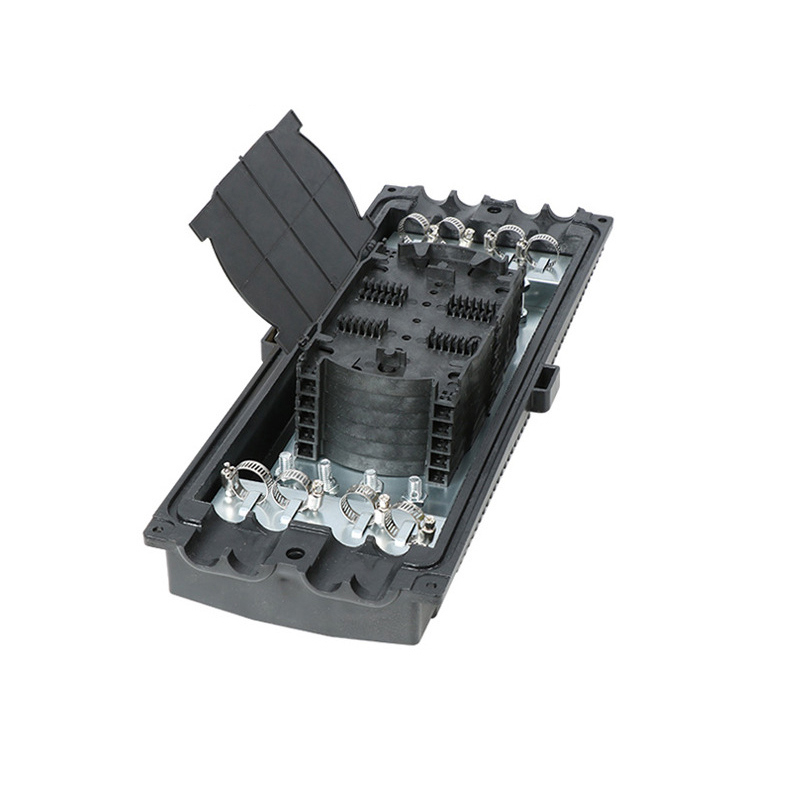

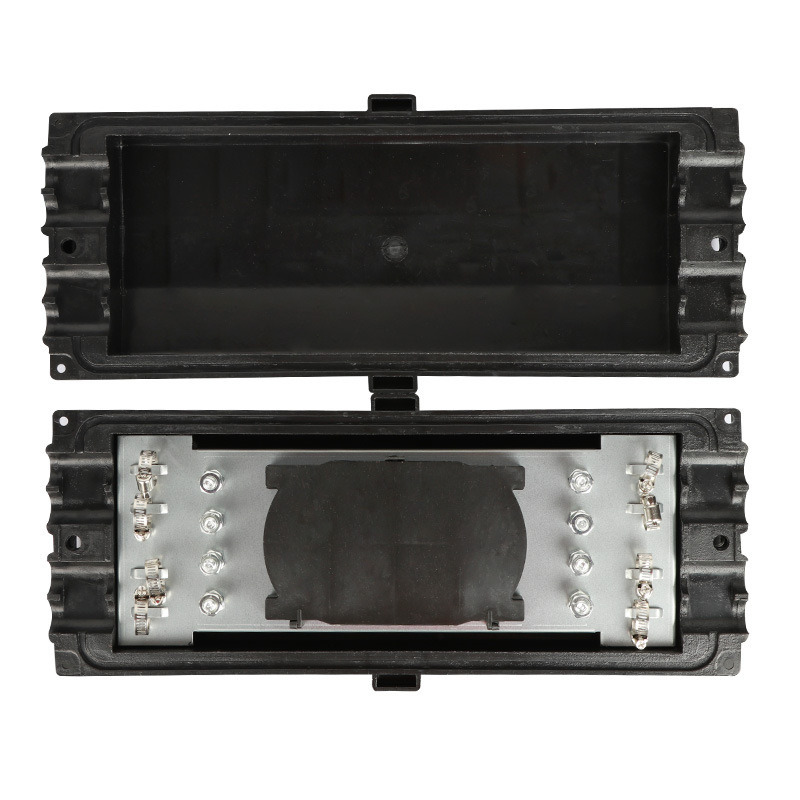

Outdoor 2 Inlet 2 Out 144 Cores IP65 Fiber Optic Joint Closure for Aerial Buried and Pole Mount Applications 0
Outdoor 2 Inlet 2 Out 144 Cores IP65 Fiber Optic Joint Closure for Aerial Buried and Pole Mount Applications 1
Application
1.1 Underground Installation
Designed to resist moisture, soil pressure, and corrosion, ensuring stable fiber connections in direct-buried optical cable projects.
1.2 Aerial Installation
Lightweight and wind-resistant design for utility pole mounting, with excellent sealing to withstand rain, snow, and UV radiation.
1.3 Duct Installation
Fitted in underground ducts to accommodate fiber splicing and management while preventing dust and moisture intrusion.
1.4 Indoor/Outdoor Transition
Protects connection points between indoor and outdoor optical cables from environmental changes and mechanical damage.
1.5 Fiber Distribution Points
Serves as intermediate nodes in FTTH (Fiber to the Home) networks, enabling fiber branching and connection for end-user access.

etiqueta:

outdoor fiber splice enclosure,

fiber splice case,

cable splice enclosure
