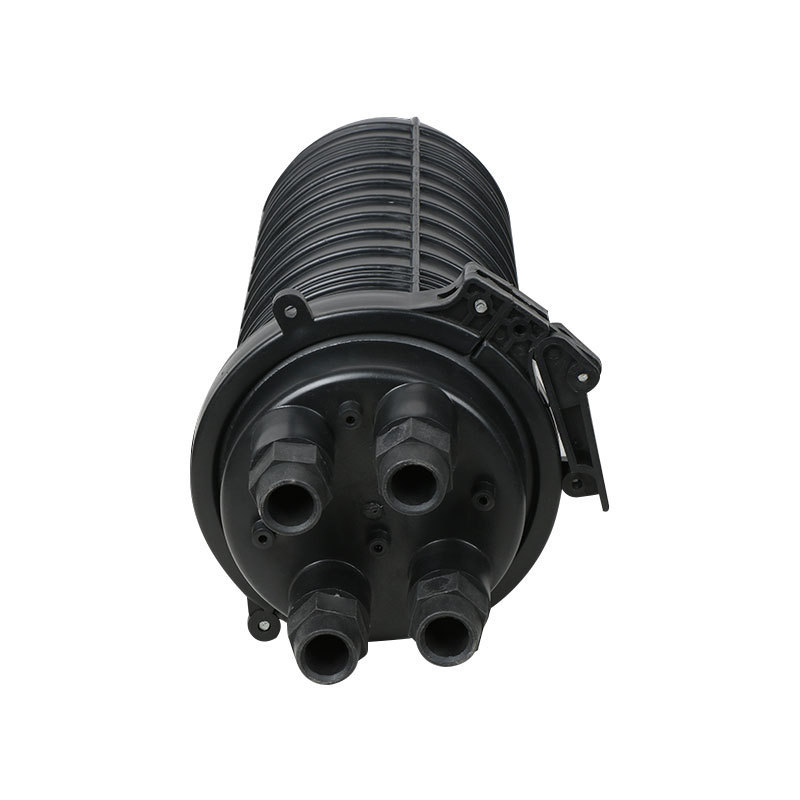

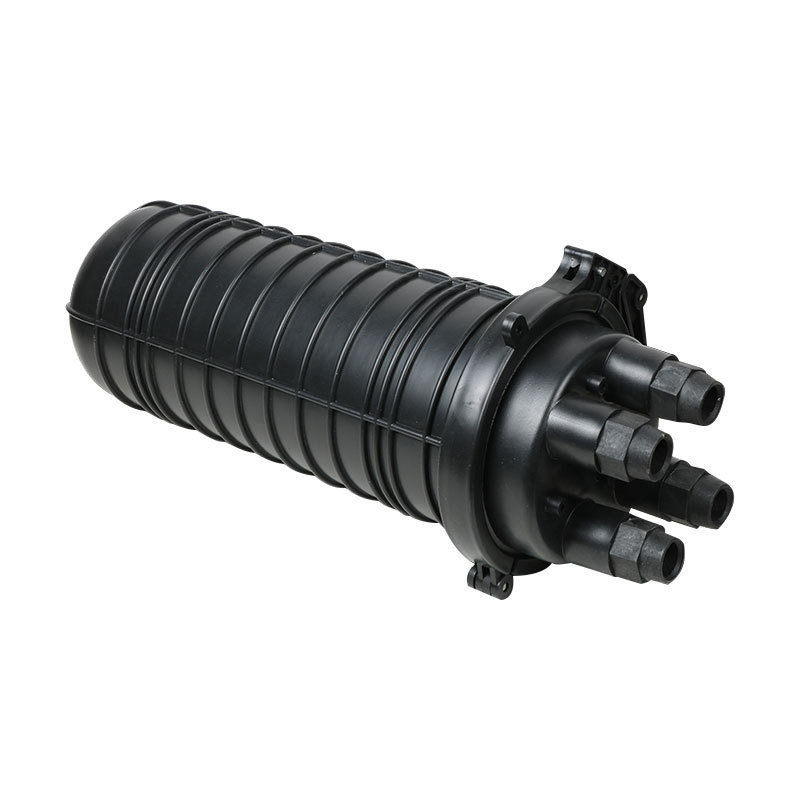

24 cores Dome Fiber Optic Splice Closure with 2 In 2 Out Ports and IP68 Environmental Protection

Ampliación de imagen : 24 cores Dome Fiber Optic Splice Closure with 2 In 2 Out Ports and IP68 Environmental Protection

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	DOWELL

Pago y Envío Términos:

Cantidad de orden mínima:	200pcs
Tiempo de entrega:	7-15 días
Condiciones de pago:	T/T
Capacidad de la fuente:	1000pcs por 10 días

Contacto

24 cores Dome Fiber Optic Splice Closure with 2 In 2 Out Ports and IP68 Environmental Protection

Descripción

Resaltar:

24 cores Fiber Optic Splice Closure

2 In 2 Out Dome Fiber Closure

IP68 Fiber Optic Enclosure

Communications 24 cores Dome Fiber Optic Splice Closures 2 In 2 Out

Fiber optic enclosure is a protective housing designed to securely store and organize fiber optic cables, splices, connectors, and passive components. It is a critical part of any fiber optic network infrastructure, serving as the central point for managing, splicing, distributing, and protecting fragile fiber connections. Think of it as the "junction box" or "patch panel" for a fiber optic system.

Specification

Entry ports number	2 In 2 Out
Splice Capacity	24 Cores
Environmental	IP20, UL 94 V-0
IP grade	68
Sealing	Gel-sealed entry ports
Temp Range	-40°C to +70°C

Features

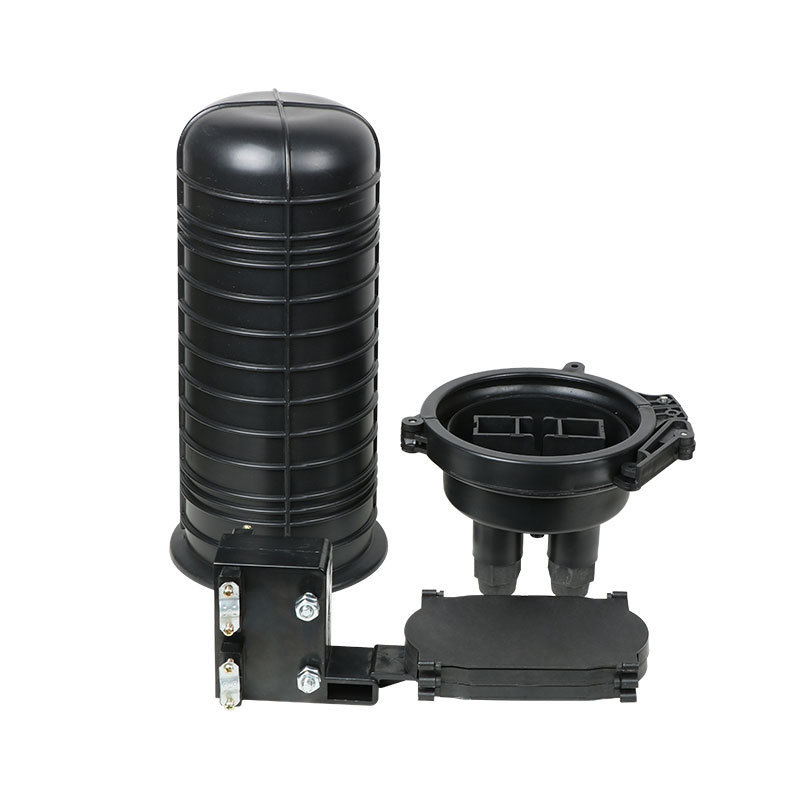

Outer Housing / Shell: The main protective body.
Baseplate / Tray: The internal frame where all components are mounted.
Splice Tray: A modular tray that holds and protects individual fiber splices. Multiple trays can often be stacked.
Adapter Panels / Plates: Hold the fiber optic adapters (e.g., LC, SC, ST) that connect two patch cords.
Fiber Management System: Includes spools, bend-radius limiters, and cable ties to safely route and secure fibers without violating their minimum bend radius.
Cable Ports & Seals: Entry and exit points for cables, with grommets or seals to maintain environmental integrity.
Grounding Lug: A terminal for connecting a grounding wire for electrical safety (especially important for metal enclosures and cables with metal strength members).
