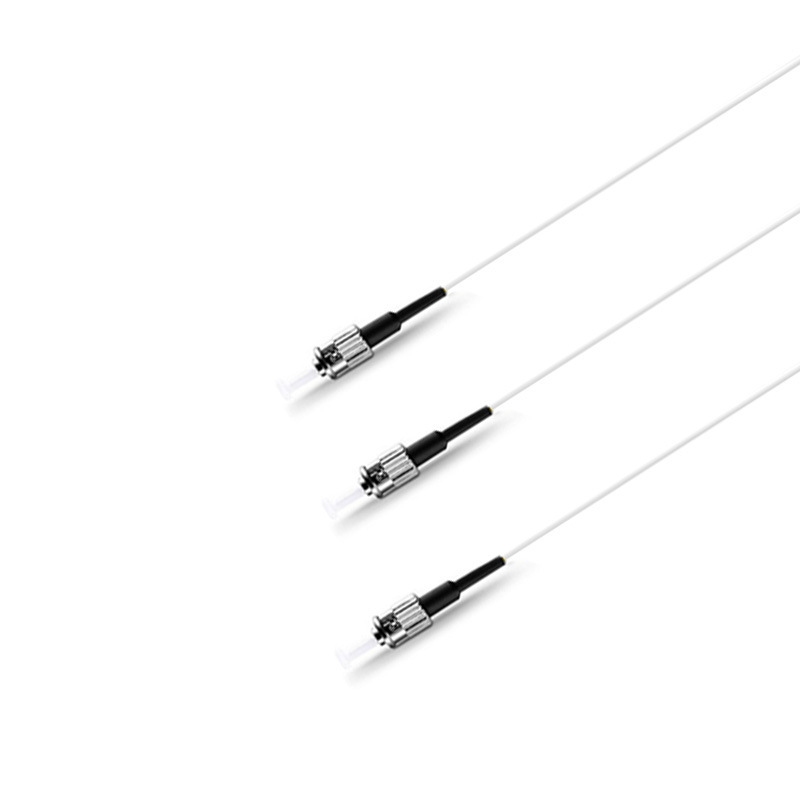

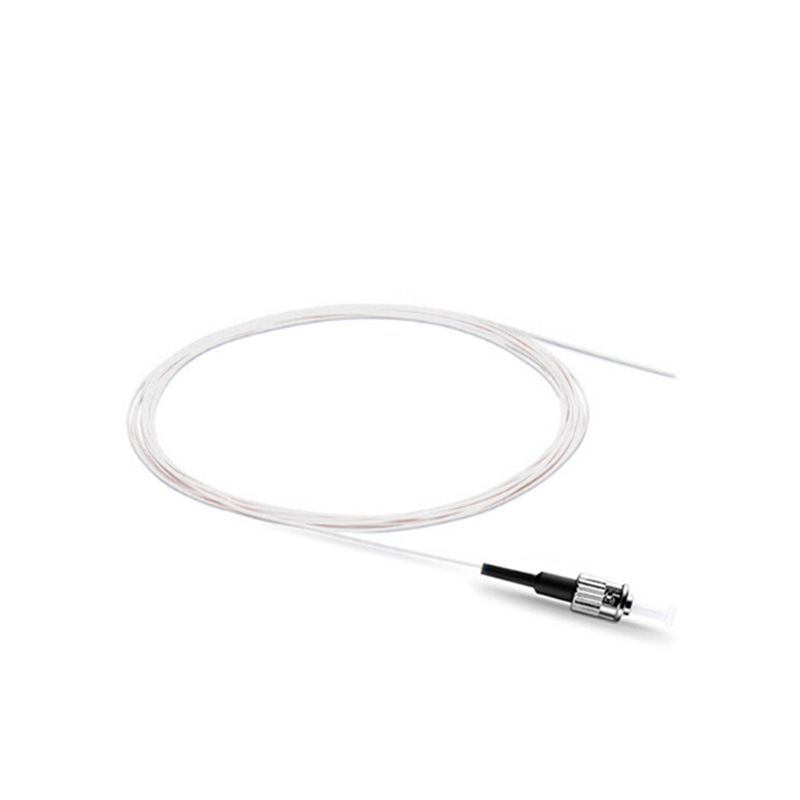

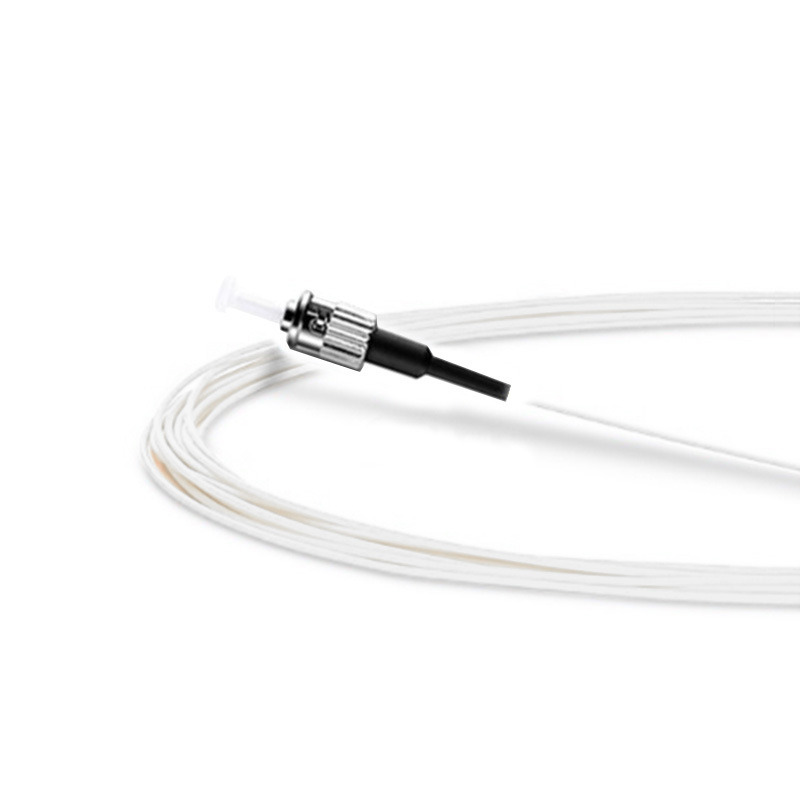

ST/UPC Simplex Fiber Optic Pigtail with LSZH Jacket and Low Insertion Loss for Reliable Termination

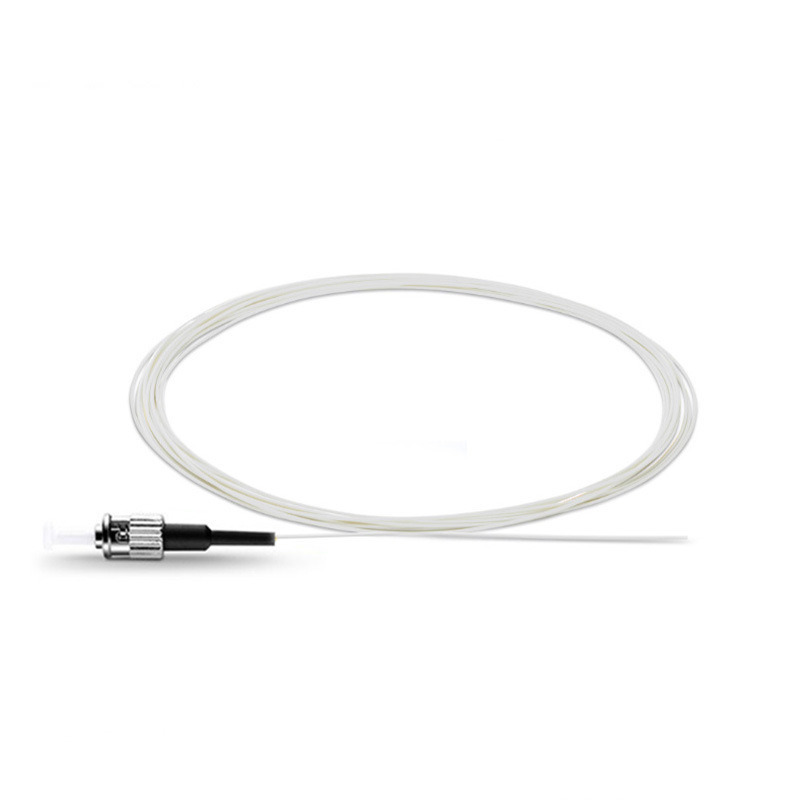

Ampliación de imagen : ST/UPC Simplex Fiber Optic Pigtail with LSZH Jacket and Low Insertion Loss for Reliable Termination

Datos del producto:

Lugar de origen:	PORCELANA
Nombre de la marca:	DOWELL

Pago y Envío Términos:

Cantidad de orden mínima:	1000pcs
Tiempo de entrega:	7-15 días
Condiciones de pago:	T/T
Capacidad de la fuente:	5000 PCS por 7 días

Contacto

ST/UPC Simplex Fiber Optic Pigtail with LSZH Jacket and Low Insertion Loss for Reliable Termination

Descripción

Pérdida de inserción (DB):

0.25

Pérdida de retorno (DB):

55/65

Tipos de conectores:

Conector

Tipos de fibra:

Multimode/singlego

Resaltar:

ST/UPC Fiber Optic Pigtail

LSZH Jacket Fiber Optic Patch Cord

Low Insertion Loss Fiber Optic Jumper

1M, 1.5m ST/UPC Simplex Fiber Optic Pigtail LSZH Jacket, 0.9mm

A fiber optic pigtail is a short, single-fiber cable with a factory-installed connector on one end and a bare, exposed fiber on the other. The name "pigtail" comes from this configuration—it looks like a short tail. The primary purpose of a pigtail is to terminate a fiber optic cable, either by splicing or connecting, in a controlled environment to provide a reliable, low-loss connection point.

Specification

CONNECTOR PERFORMANCE
LC, SC, ST and FC connectors	Multimode	Singlemode
	at 850 and 1300 nm	UPC at 1310 and 1550 nm
	APC at 1310 and 1550 nm	Typical
Insertion Loss (dB)	0.25	0.25
Return Loss (dB)	-	55

Structure

Connectorized End: This end has a standard connector (like SC, LC, FC, ST, or MTP/MPO for multi-fiber) that is polished and precision-made in a factory. This ensures optimal performance.
Bare Fiber End: This is the "working" end. The fiber's buffer coating is stripped away, leaving the bare glass cladding and core exposed. This end is designed for splicing.
Cable Jacket: A short, ruggedized jacket (often 900µm or 2mm/3mm) protects the fiber. It is usually color-coded (orange for multimode, yellow for single-mode).
