LSZH Jacket SC UPC Fiber Optic Jumper Cord with Low Insertion Loss High Return Loss and Wide Temperature Range for Telecommunications

LSZH Jacket SC UPC Fiber Optic Jumper Cord with Low Insertion Loss High Return Loss and Wide Temperature Range for Telecommunications
LSZH Jacket SC UPC Fiber Optic Jumper Cord with Low Insertion Loss High Return Loss and Wide Temperature Range for Telecommunications LSZH Jacket SC UPC Fiber Optic Jumper Cord with Low Insertion Loss High Return Loss and Wide Temperature Range for Telecommunications LSZH Jacket SC UPC Fiber Optic Jumper Cord with Low Insertion Loss High Return Loss and Wide Temperature Range for Telecommunications

Ampliación de imagen :  LSZH Jacket SC UPC Fiber Optic Jumper Cord with Low Insertion Loss High Return Loss and Wide Temperature Range for Telecommunications

Datos del producto:
Lugar de origen: PORCELANA
Nombre de la marca: DOWELL
Pago y Envío Términos:
Cantidad de orden mínima: 1000
Tiempo de entrega: 7-15 días
Condiciones de pago: T/T
Capacidad de la fuente: 10000 piezas por 7 días
Contacto

LSZH Jacket SC UPC Fiber Optic Jumper Cord with Low Insertion Loss High Return Loss and Wide Temperature Range for Telecommunications

Descripción
Pérdida de inserción: ≤ 0,3 dB para el SM Pérdida de retorno (excepto MM): ≥ 50 dB (CEP)
Capacidad para repetir: 0.2 dB (500 ciclos superados) Gama de funcionamiento de los temporeros: - de 40°C a +75°C
Gama de los temporeros del almacenamiento: - de 40°C a +85°C Humedad: 95% RH (no envasado)
Resaltar:

Low Insertion Loss Fiber Optic Jumper Cord

,

High Return Loss Fiber Optic Patch Cord

,

Wide Temperature Range Fiber Optic Cable

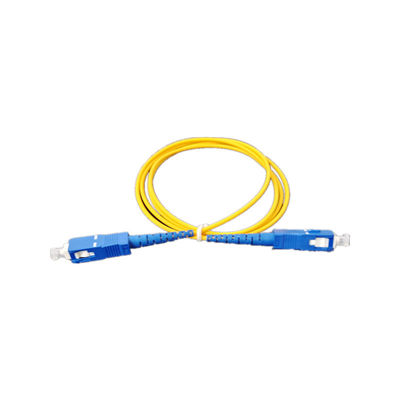

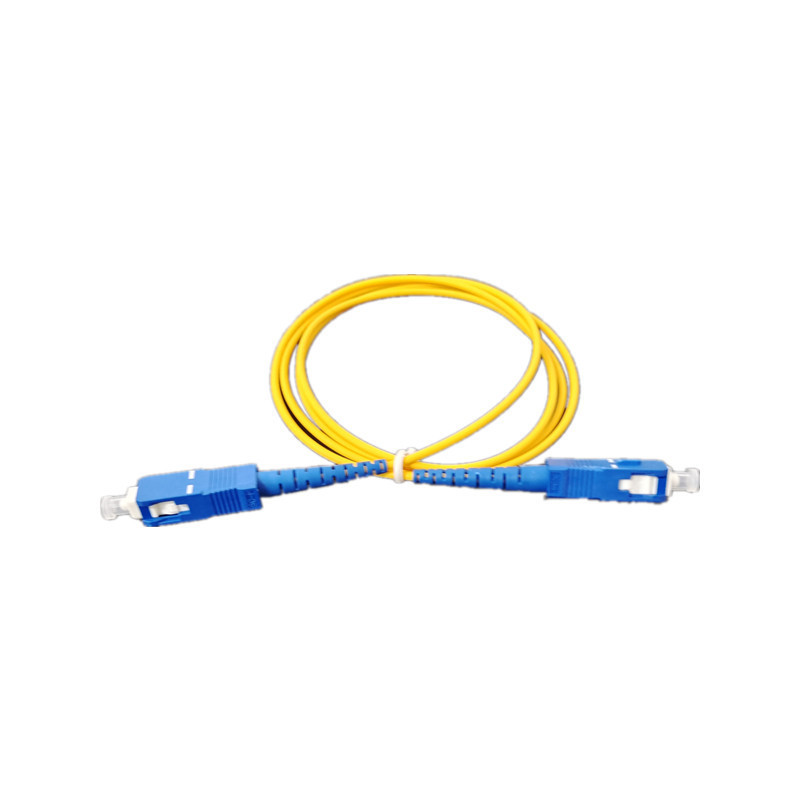

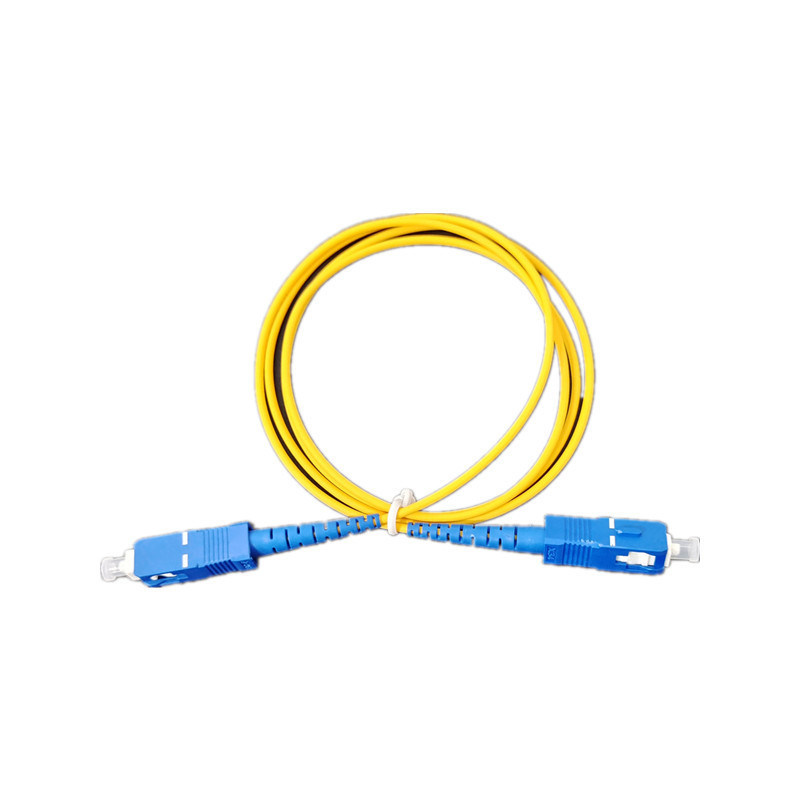

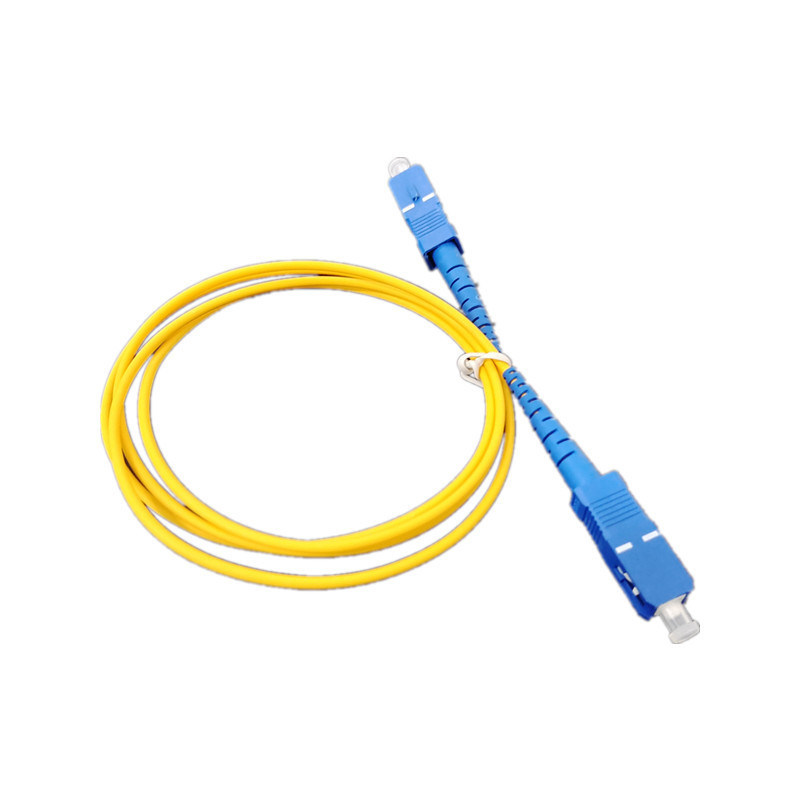

LSZH Jacket SC UPC- SC UPC Fiber Optic Jumper Cord Simplex SM
A fiber optic jumper cord is a short, flexible cable with connectors on both ends. Its primary purpose is to connect optical network components, such as:
  • Optical transceivers (in switches, routers, servers)
  • Patch panels
  • Fiber distribution frames
  • Test equipment (like OTDRs or optical power meters)
Specifications
Parameter Value
Insertion Loss ≤ 0.3 dB for SM
≤ 0.4 dB for MM
Return Loss (except MM) ≥ 45 dB (PC)
≥ 50 dB (SPC)
≥ 55 dB (UPC)
≥ 65 dB (APC)
Repeatability 0.2 dB (500 Cycle Passed)
Operating Temp Range -40°C to +75°C
Storage Temp Range -40°C to +85°C
Humidity 95% RH (Non Packaging)
Applications
  1. CATV System
  2. Telecommunications
  3. Optical Networks
  4. FTTH (Fiber to the Home)
  5. High speed transmission Systems
  6. Testing / Measurement Instruments
LSZH Jacket SC UPC Fiber Optic Jumper Cord with Low Insertion Loss High Return Loss and Wide Temperature Range for Telecommunications 0
