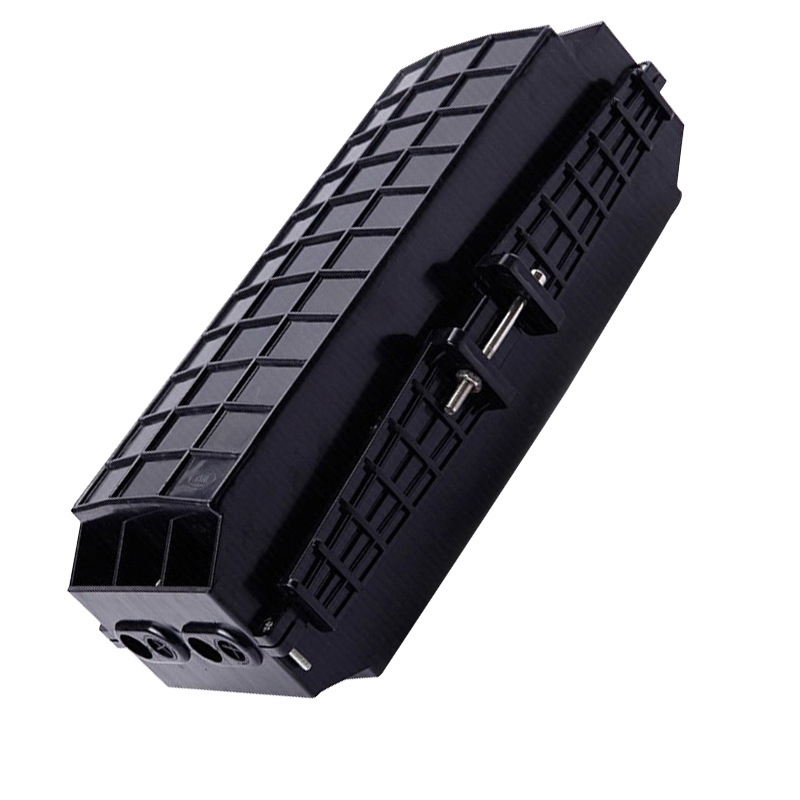

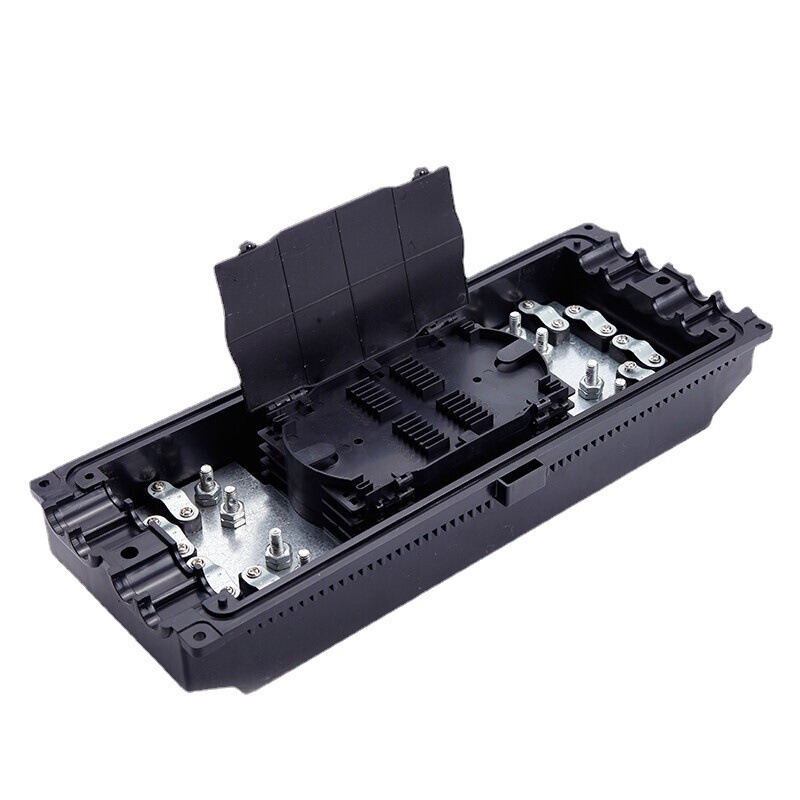

PC ABS Material 48 Cores Fiber Optic Enclosure 4 In 4 Out Horizontal Type with 420x150x180mm Dimensions

PC ABS Material 48 Cores Fiber Optic Enclosure 4 In 4 Out Horizontal Type with 420x150x180mm Dimensions
PC ABS Material 48 Cores Fiber Optic Enclosure 4 In 4 Out Horizontal Type with 420x150x180mm Dimensions PC ABS Material 48 Cores Fiber Optic Enclosure 4 In 4 Out Horizontal Type with 420x150x180mm Dimensions PC ABS Material 48 Cores Fiber Optic Enclosure 4 In 4 Out Horizontal Type with 420x150x180mm Dimensions

Ampliación de imagen :  PC ABS Material 48 Cores Fiber Optic Enclosure 4 In 4 Out Horizontal Type with 420x150x180mm Dimensions

Datos del producto:
Lugar de origen: PORCELANA
Nombre de la marca: DOWELL
Pago y Envío Términos:
Cantidad de orden mínima: 100pcs
Tiempo de entrega: 7-15 días
Condiciones de pago: T/T
Capacidad de la fuente: 1000pcs por 10 días
Contacto

PC ABS Material 48 Cores Fiber Optic Enclosure 4 In 4 Out Horizontal Type with 420x150x180mm Dimensions

Descripción
Material: PC PC/ABS Material de sellado: Caucho termoplástico
Método de montaje: Aéreo, enterrado directo, por tuberías, montaje en pared, pozo de registro Dimensión: 420 (largo) × 150 (ancho) × 180 (alto) mm
Peso neto: 2 kg Temperatura: -20 ℃ ~ 45 ℃
Resaltar:

48 Cores Fiber Optic Enclosure

,

4 In 4 Out Fiber Splice Closure

,

420x150x180mm Fiber Optic Enclosure

PC ABS Material 48 Cores Fiber Optic Enclosure 4 In 4 Out Horizontal Type
A FOSC (Fiber Optic Splice Closure) is a protective, re-enterable housing used in fiber optic networks to provide a safe environment for splicing, branching, storing, and protecting fiber optic cables. Think of it as a rugged, weatherproof junction box for delicate fiber connections. The term "FOSC" is actually a brand name from CommScope (formerly from TE Connectivity / Tyco Electronics), but it has become a genericized term—much like "Kleenex" for tissues—used to describe many similar fiber splice closures from various manufacturers.
Specifications
Body Material PC PC/ABS
Sealing Material Thermoplastic rubber
Assembling method Aerial, direct buried, pipelined, wall mounting, manhole
Dimension 420(L)×150(W)×180(H)mm
Net Weight 2KG
Temperature -20℃~45℃
Size
PC ABS Material 48 Cores Fiber Optic Enclosure 4 In 4 Out Horizontal Type with 420x150x180mm Dimensions 0
Features
  • Protection: Shields fragile fiber splices and excess fiber (slack) from environmental hazards like:
    • Moisture and Water
    • Dust and Dirt
    • Extreme Temperatures
    • Mechanical Impact and Crushing
    • Rodents and other pests
  • Splicing Point: It is the primary location where two fiber optic cables are joined together (spliced), either permanently (fusion splice) or with connectors (mechanical splice).
  • Cable Management: Provides an organized way to store and manage splice trays and the excess fiber loop, which is critical for future repairs or re-routing.
  • Access and Re-entry: Unlike a simple enclosure, FOSCs are designed to be easily opened and re-sealed, allowing technicians to add, remove, or repair splices throughout the network's lifecycle.

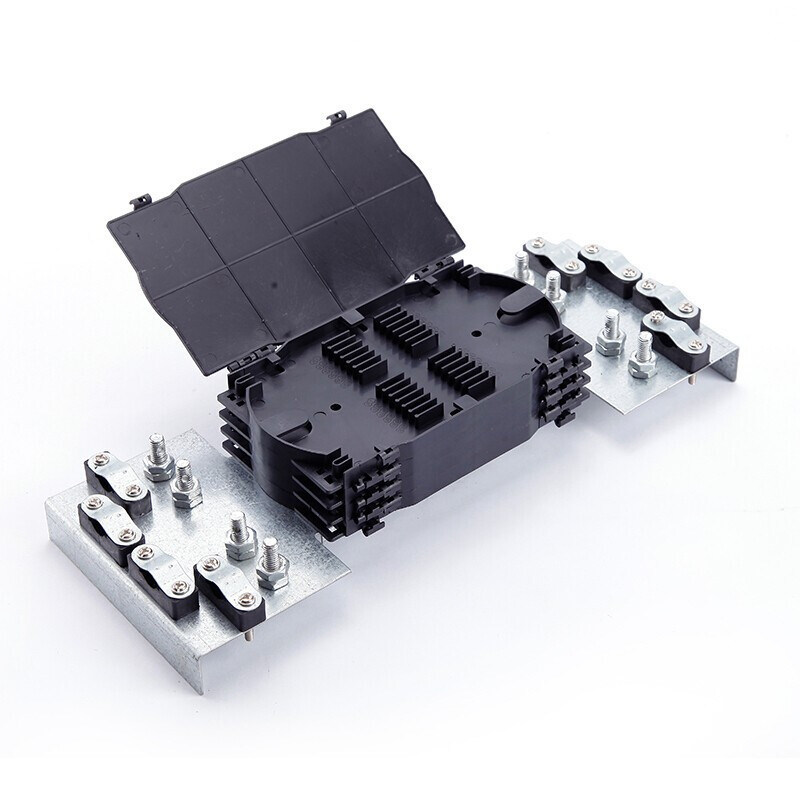

Accessories
PC ABS Material 48 Cores Fiber Optic Enclosure 4 In 4 Out Horizontal Type with 420x150x180mm Dimensions 1
