Outdoor 2*5.0mm FTTH SC APC Flat Drop Patch Cord Singlemode With Balck Jacket

Name: Outdoor 2*5.0mm FTTH SC APC Flat Drop Patch Cord Singlemode With Balck Jacket
Brand: DOWELL INDUSTRY GROUP LIMITED
SKU: DW-SA5-SA5
Price: 0.45 USD
Availability: InStock

Todos los productos

Cordón de parches de fibra óptica
(48)

Cierre del empalme de la fibra óptica
(27)

Clampada de alambre de caída de fibra
(39)

Clampada de anclaje ADSS
(64)

Cables de fibra óptica
(28)

Separador de PLC
(19)

Cordón de parche MPO
(5)

Conector impermeable de la fibra óptica
(60)

Conector de terminales de fibra óptica
(18)

Caja de distribución de fibra óptica
(27)

Limpiador de fibra óptica
(18)

Conector de trasero Scotchlok
(24)

Cintas aislantes eléctricas
(12)

Módulo LSA de KRONE
(21)

Herramientas para cortar cables de red
(171)

Certificación

China DOWELL INDUSTRY GROUP LIMITED certificaciones

Estoy en línea para chatear ahora

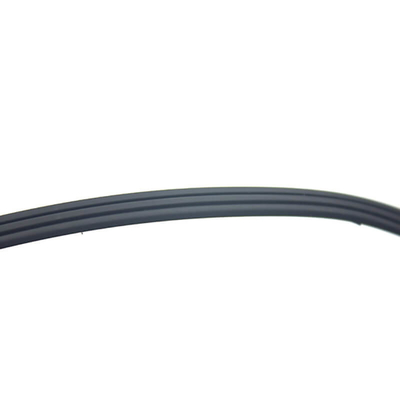

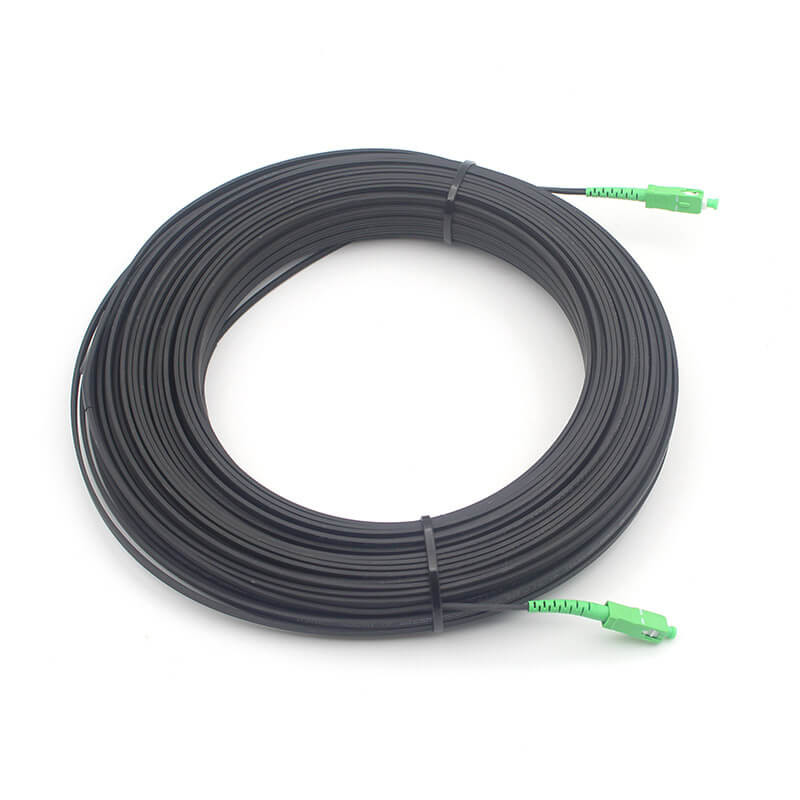

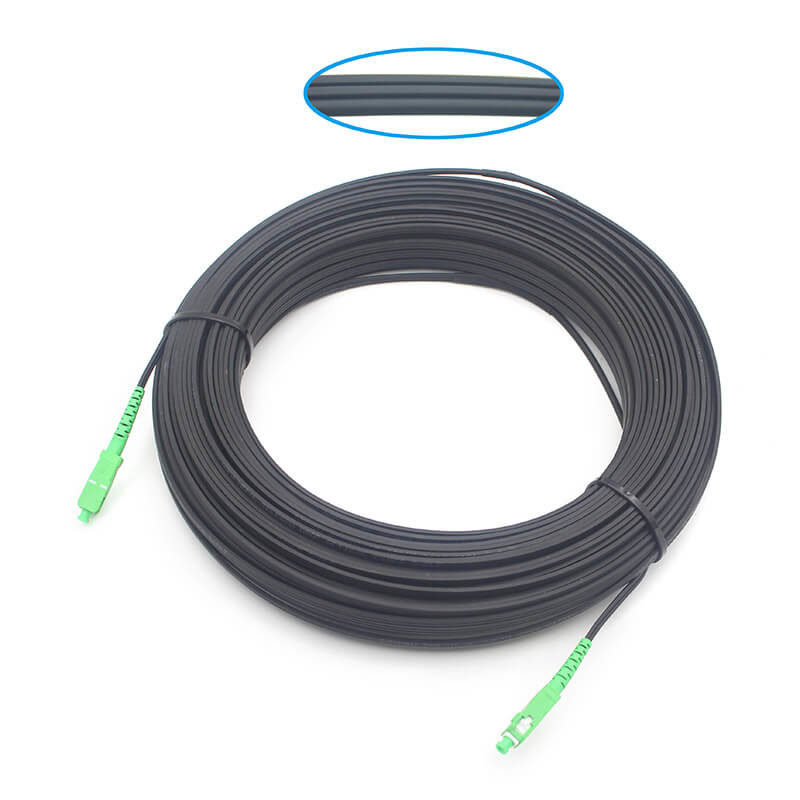

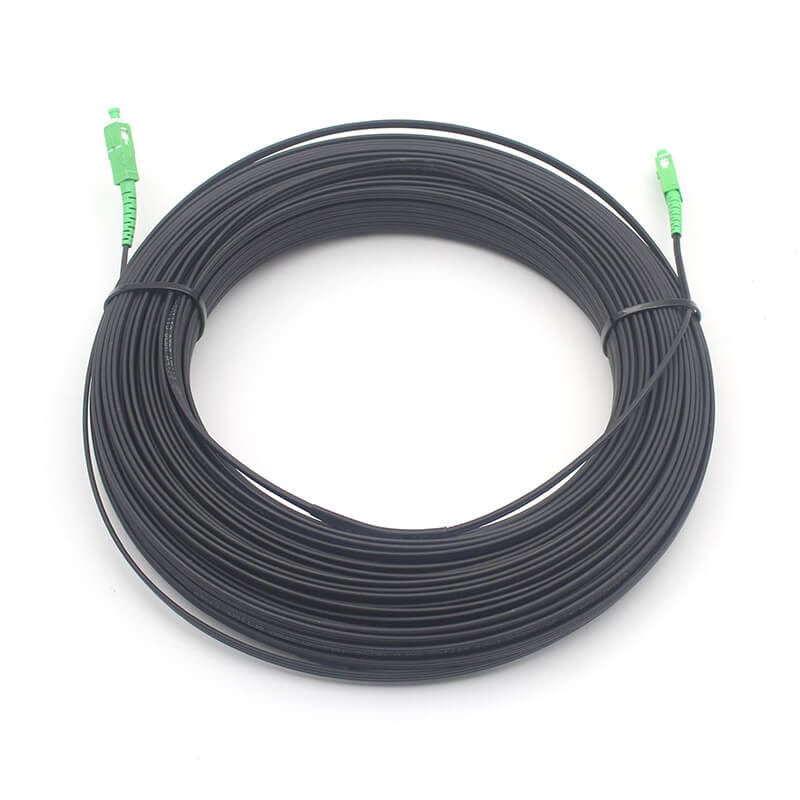

Outdoor 2*5.0mm FTTH SC APC Flat Drop Patch Cord Singlemode With Balck Jacket

Ampliación de imagen : Outdoor 2*5.0mm FTTH SC APC Flat Drop Patch Cord Singlemode With Balck Jacket

Datos del producto:

Place of Origin:	China
Nombre de la marca:	DOWELL
Model Number:	DW-SA5-SA5

Pago y Envío Términos:

Minimum Order Quantity:	500 pieces
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	1000 PCS Per 7 Days

Contacto

Outdoor 2*5.0mm FTTH SC APC Flat Drop Patch Cord Singlemode With Balck Jacket

Descripción

Insertion loss:	≤0.30dB(SM)/≤0.5dB(MM)	Return loss:	≥50dB (PC)/ ≥60dB (APC)
Working temperature:	-20℃ to +70℃	Storage temperature:	-40℃ to +85℃
Pull-out force:	≤19.6.N	Flame resistance:	UL94-V0

Outdoor 2*5.0mm FTTH SC APC Flat Drop Patch Cord With Balck Jacket

The fiber optic patch cord mainly used on patch panel or for the connection between outlets and terminal equipment.It also widely used for high bit rate data transmission,telecommunications,tesing instruments,active device terminations,LAN/WAN and FTTX.

Specification:

1.1 Patch cord versions:

Jumper tolerance requirement
Overall length (L) (M)	length of tolerance (CM)
0＜L≤20	+10/-0
20＜L≤40	+15/-0
L＞40	+0.5%L/-0

2. Cable Parameters:

Cable	Out sheath	Weight	Minimum allowable		minimum allowable		Minimum Bending		Storage
Count	Diameter	(KG)	Tensile Strength		Crush Load		Radius		temperature
(F)	(MM)		(N)		(N/100mm)		(MM)		(℃)
			short term	long term	short term	long term	short term	long term
1	(2.0±0.2)×(5.0±0.3)	21.7	400	200	2200	1000	20D	10D	-20 ~ +60

3. Optical Characteristics:

Item	Parameter				Reference
	Single mode		Multi mode
	Standard	Elite	Standard	Elite	/
Test the wavelength	1310-1550nm		850-1300nm		/
Insertion loss(Typical)	≤0.30dB	≤0.20dB	≤0.5dB	≤0.20dB	IEC 61300-3-34
Insertion loss(Max)	≤0.75dB	≤0.35dB	≤0.75dB	≤0.35dB
Return loss	≥50dB (PC)/	≥55dB (PC)/	≥30dB(PC)	≥30dB(PC)	IEC 61300-3-6
Return loss	≥60dB (APC)	≥65dB (APC)	≥30dB(PC)	≥30dB(PC)	IEC 61300-3-6
Working temperature	-20℃to +70℃				/
Storage temperature	-40℃to +85℃				/
